Division of the entities

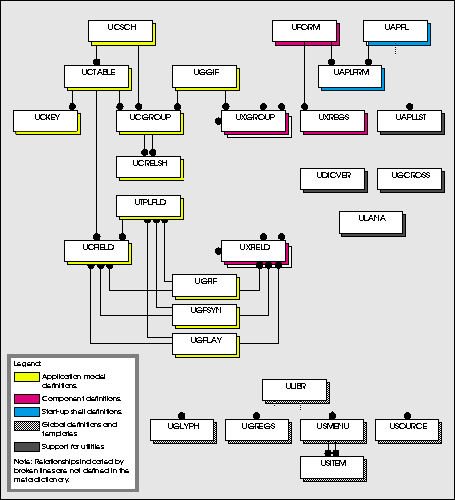

The source code for the programs you define in Uniface are stored in a database of your own choosing, using a model like this:

However this is not a division that makes any sense when editing it as plain text files, or storing it for configuration management purposes.

A FORM should contain all of the form elements, but none of the conceptual elements, or elements from the application model. However there should only be 1 form in a file.

For this reason the entities are both combined and split.

They are ‘split’ on a primary key value, like form-name, and combined on a like-data basis, eg: component variables and forms.

This behavior is fully customizable using the configuration files provided.

Further Information

How the driver works
How the driver works with Source Code Control
Format of the files
Differences between UD6/CMtool and UD7/XML-DATA and W3C XML-DATA format
Setting the configuration files

UD6 Overview
How to use the driver with a configuration management solution
